New Modern Coal Plants are Needed for Energy Security, Grid Reliability, Affordable Electricity Generation and Without Pollution, so let me explain some of the details of the equipment used to clean the flue gases and the progress made in cleaning the air since 1970

Short History of Air Pollution Control

The EPA was started in 1970, for good reasons of cleaning the air and water. Coal plants built before 1970 had no controls on sulfur emissions and particulate collection was only between 75 and 90%. Today nearly all of the sulfur and particulates are collected. I have been a strong critic of the EPA since the “War on Coal” began during the Clinton administration with the beginning of weaponization of government rules such as “New Source Review”. However, in 1970, the EPA was needed to clean our air and water.

Shortly after promulgation of the EPA the major air pollutants were identified that needed controls. These pollutants are sulfur, particulates, VOCs (volatile organic compounds), carbon monoxide, lead, oxides of nitrogen and ozone. Since 1970 the EPA has measured and reported the progress of cleaning the air and this progress of controlling the true pollutants is shown on the chart below.

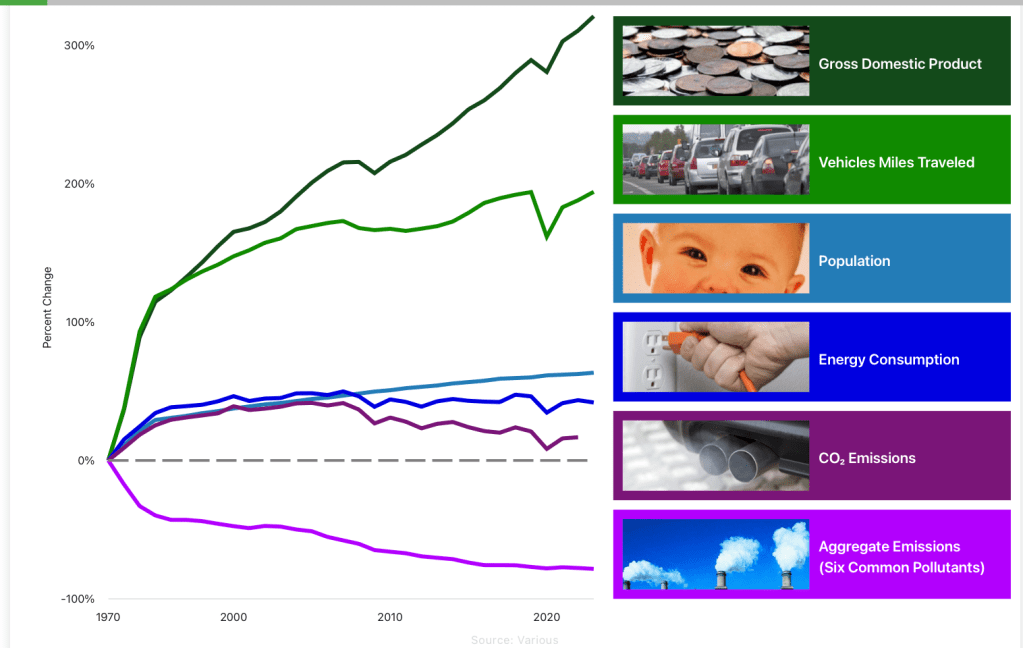

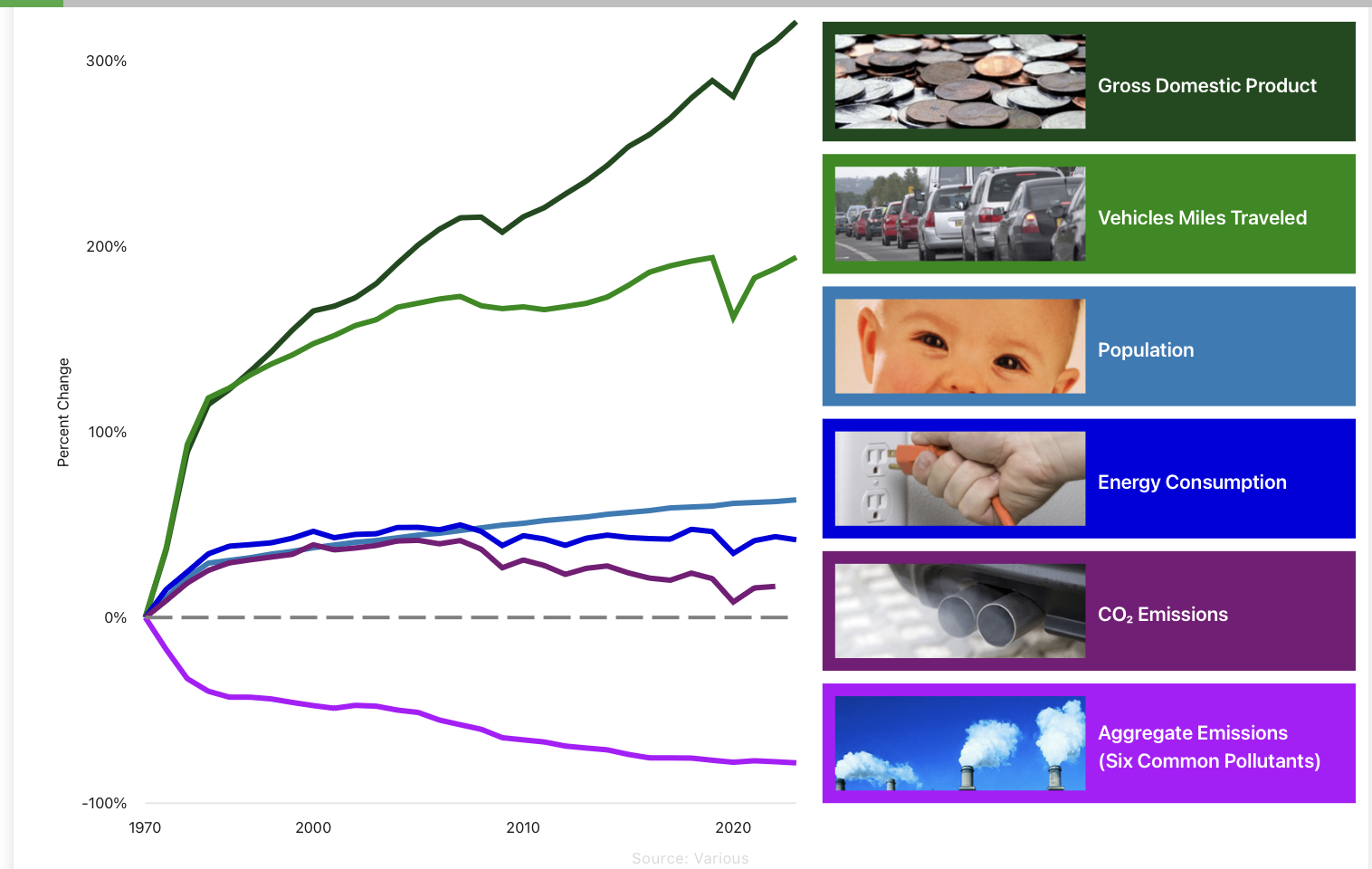

Notice the increases since 1970 in population, GDP, energy use and miles driven. These all trended up, whereas the pollutants trended down 78%. This is a story that needs to be told.

We Figured Out How to Make Coal Plants Clean and Then the EPA was Politicized & Weaponized to Kill Them

The perfection of advanced flue gas cleanup occurred about the same time that the EPA became a political weapon. In other words, the air pollution industry succeeded in cleaning all of the harmful pollutants out of the flue gas stream just as the Obama administration declared CO₂ a pollutant, which it is not.

This attempt to kill reliable, affordable, Dispatchable and on-site energy storable coal power has been very effective. Over half of the coal power plants in America have been shut down while the largest fuel source for power generation in the rest of the world is still coal and the coal use continues to rise.

Clean Coal Combustion in a Pulverized Coal Power Plant

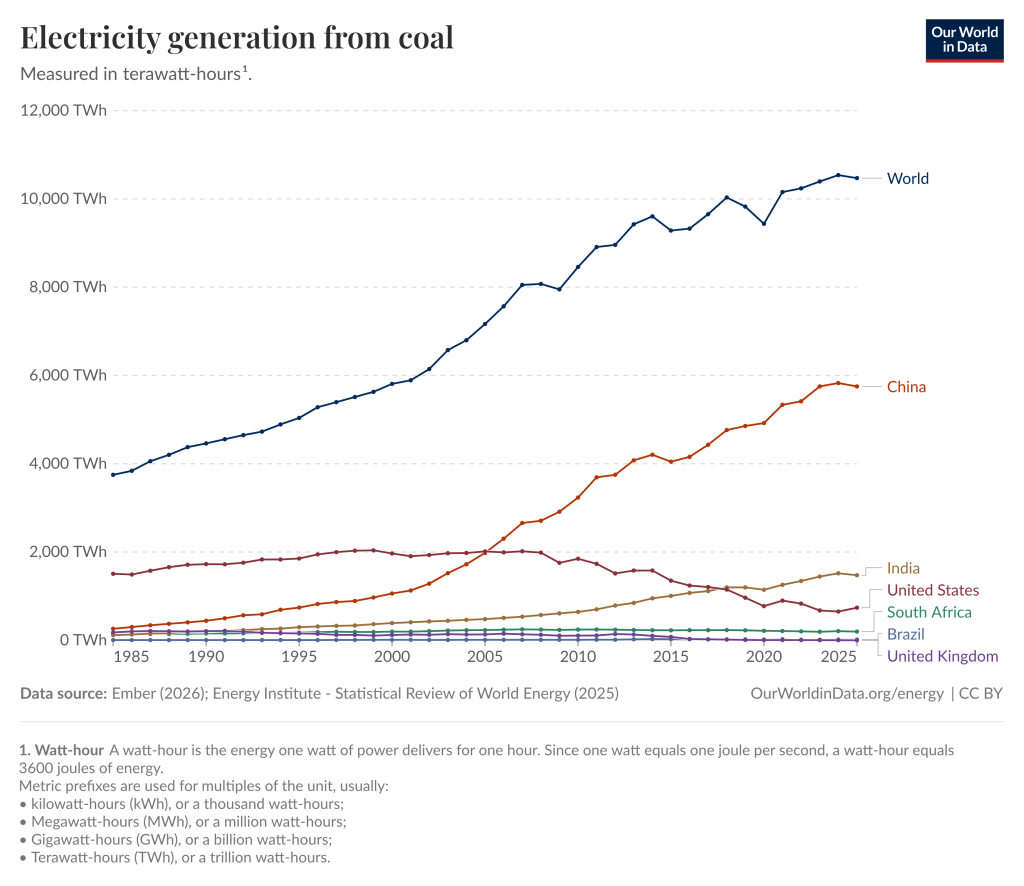

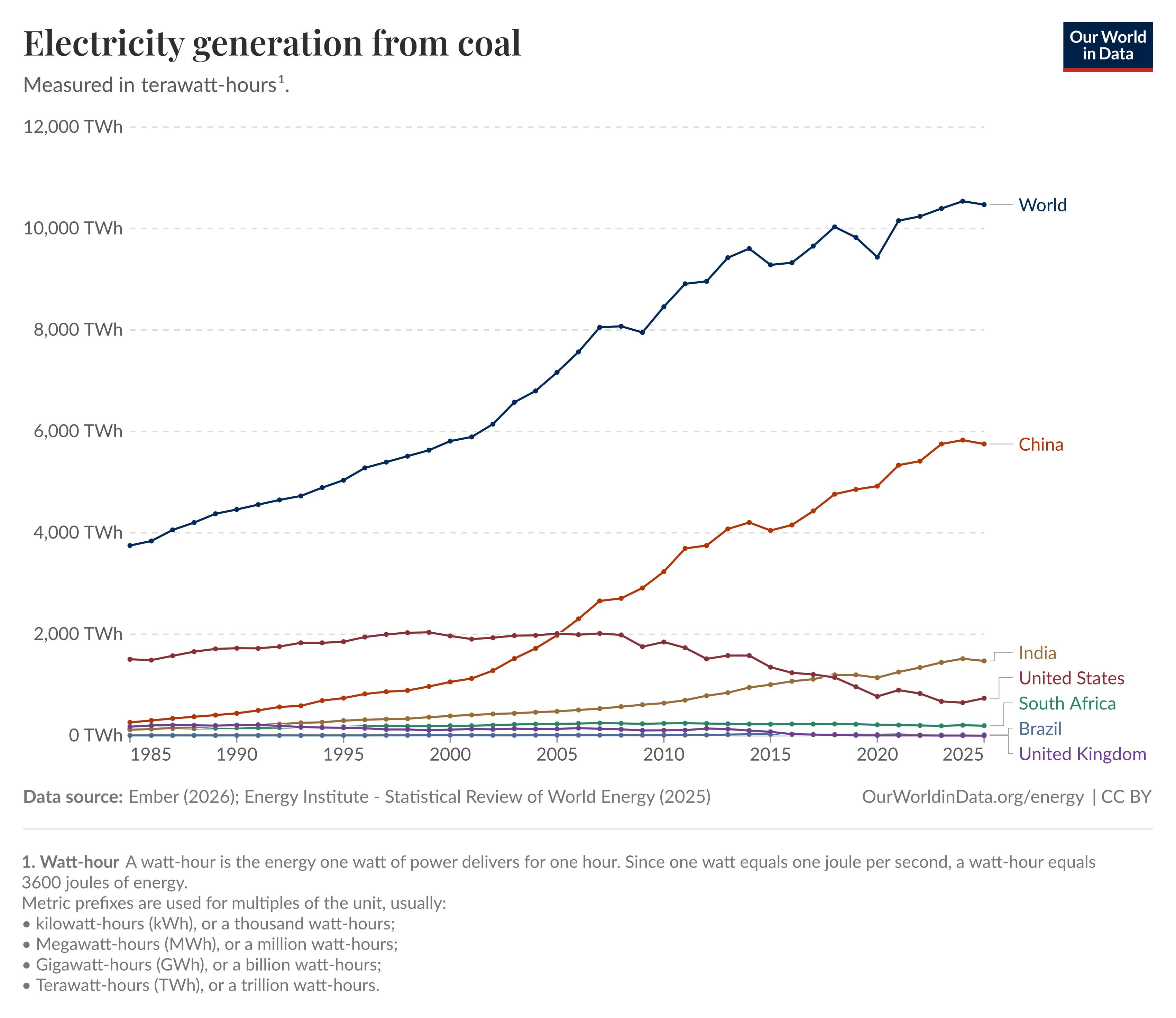

Most of the coal power plants in the world use the pulverized coal firing method. I described the Zimmer coal plant in a previous article. “The Magnificent Heat Engines that Society Depends On”.

There are other forms of coal power including CFBs (Circulating Fluidized Beds), IGCC (Integrated Gasification, Combined Cycle), stoker firing and cyclone firing. PC Firing (Pulverized Coal) is the most common method used and that is what I will discuss with regard to the exhaust gas (flue gas) cleanup systems. Here is a typical schematic flow diagram of a PC steam generator and the flue gas flow path to the stack.

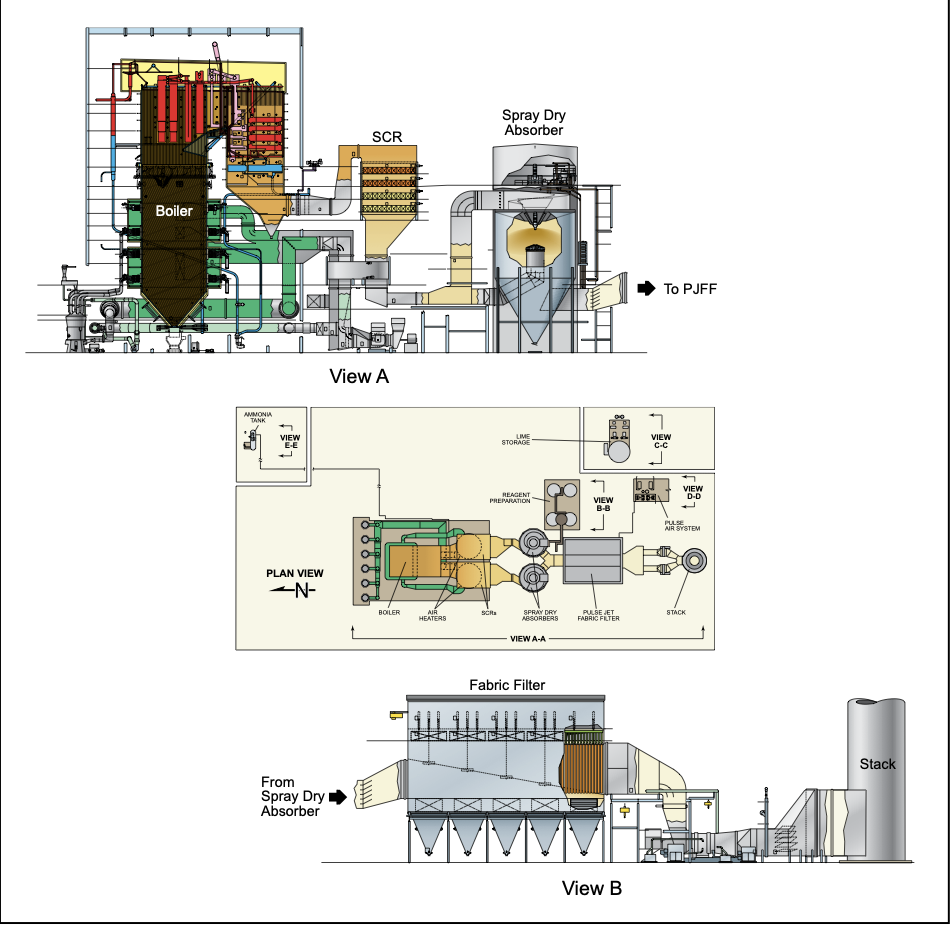

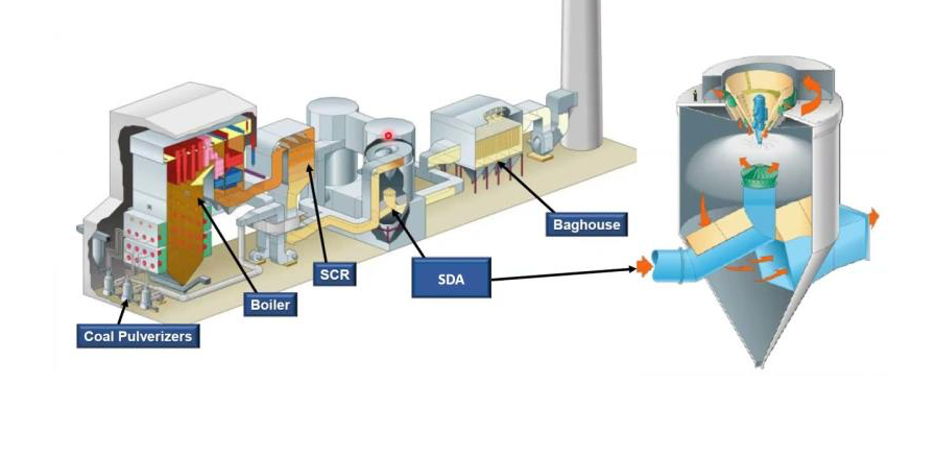

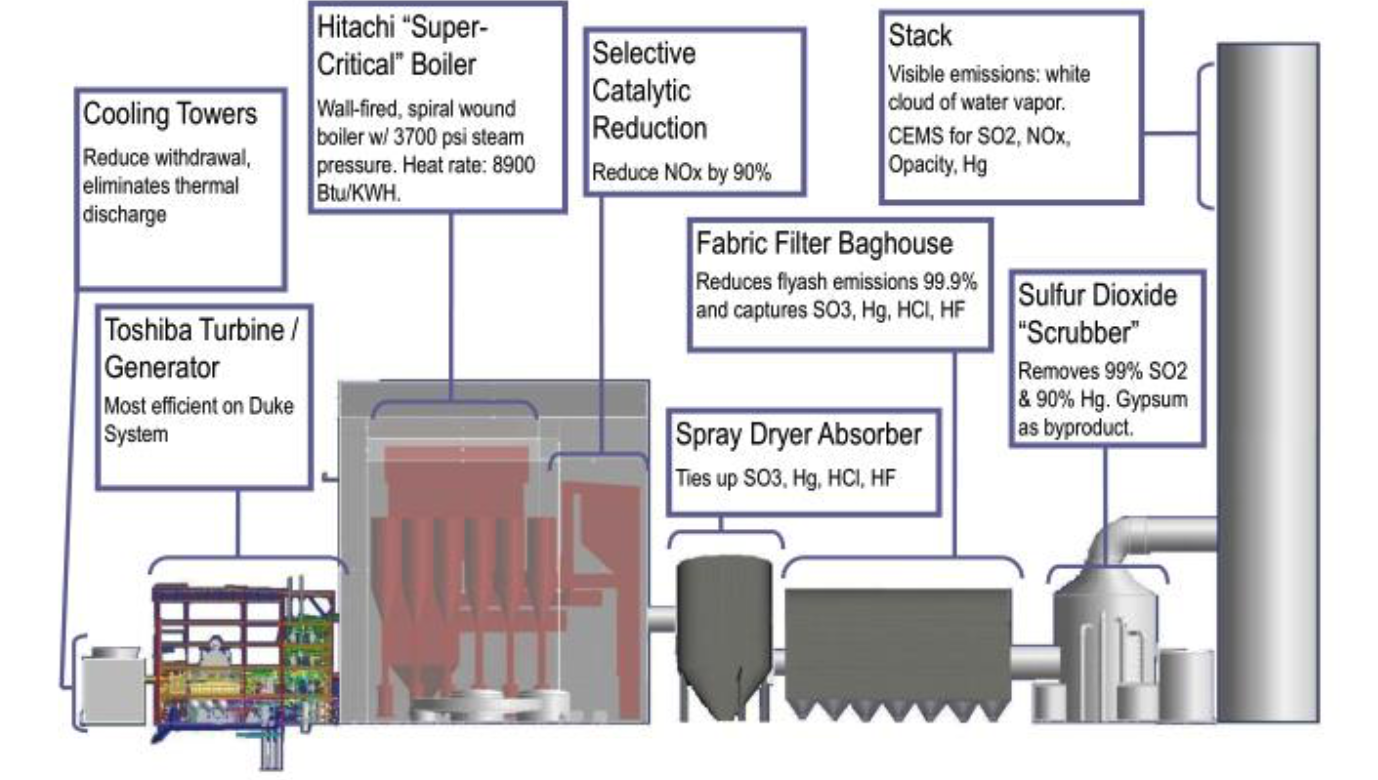

The flue gas cleanup equipment in the schematic is shown to approximate scale. The power generation equipment is dwarfed by the size of the flue gas cleanup systems. So is the number of employees required to maintain the chemical processes at the backend larger than those needed to operate and maintain the power generation equipment. Yes, the flue gas cleanup systems are expensive, but once built, the electricity production costs are mostly fuel. Thus, as natural gas prices rise, such as with the Middle East crisis, coal mined in America can be used competitively for power generation less expensively than natural gas fuel for power generation. All of the economic and operational advantages of coal power without pollution.

How the Pollutants are Controlled

Lets take a look at the pollutants one at a time and take a look at how they are lessened or removed from the flue gas stream.

Sulfur Removal

Sulfur emissions were the main cause of acid rain and large coal power plants were the single largest source of atmospheric sulfur emissions. Corrections began with the invention and deployment of FGD (Flue Gas Desulfurization) systems about 1978. Since 1978 the efficacy of FGD systems have advanced. Here below is a schematic of a wet scrubber which utilizes a limestone slurry to capture the oxides of sulfur into a calcium oxide slurry to create calcium sulfate, aka gypsum. The waste calcium sulfate is often utilized for fertilizer and for manufacturing wall board as a byproduct.

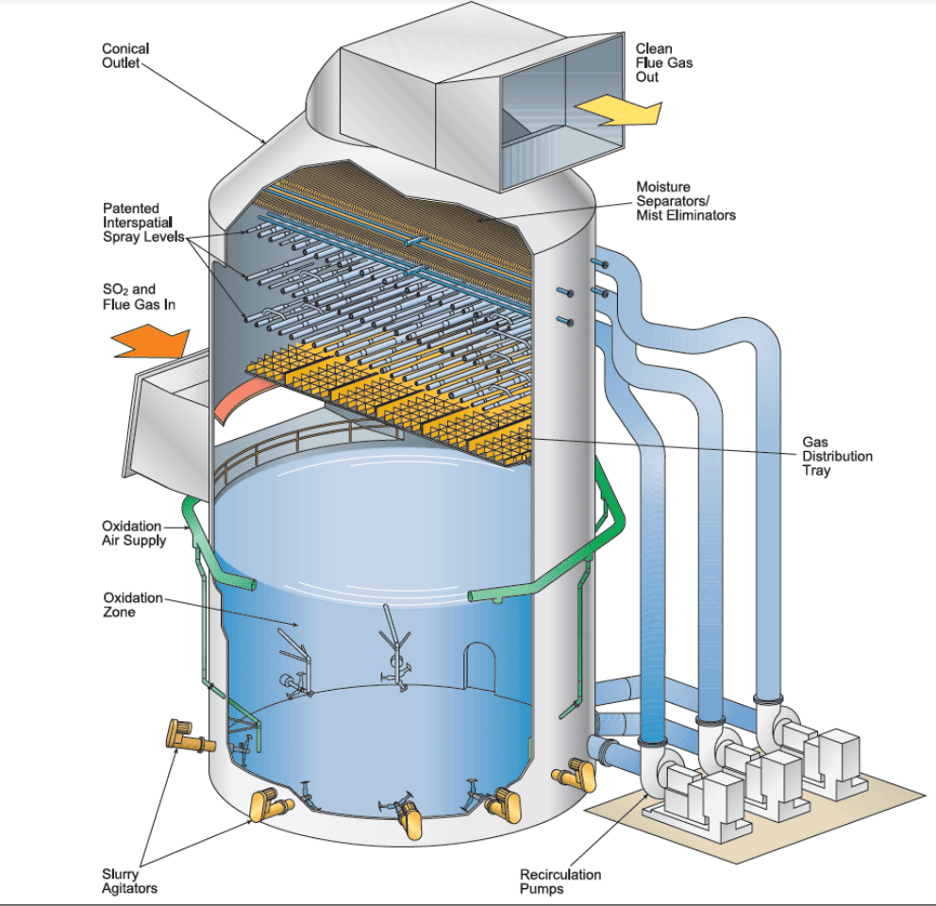

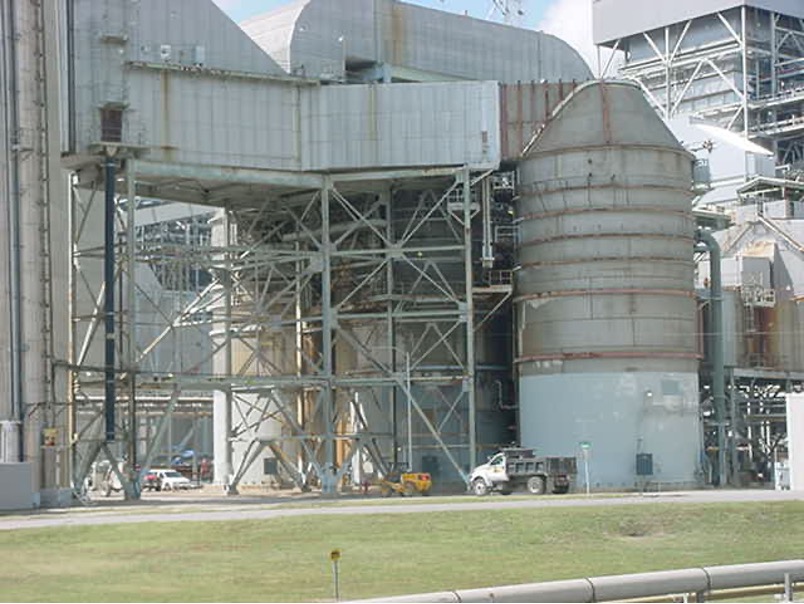

Here is a typical installation of an FGD scrubber

More commonly used in the most modern coal plants for sulfur removal is Spray Dryer Absorbers. These collect the sulfur in small droplets of limestone slurry which is then transported in the gas stream to a Baghouse. The ash + limestone is collected on the surface of fabric filter bags and collected in hoppers beneath.

Particulates Removal

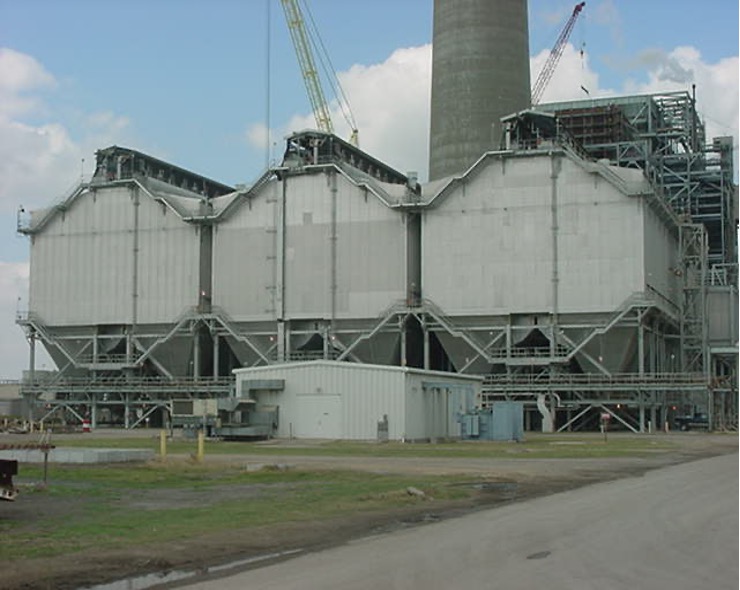

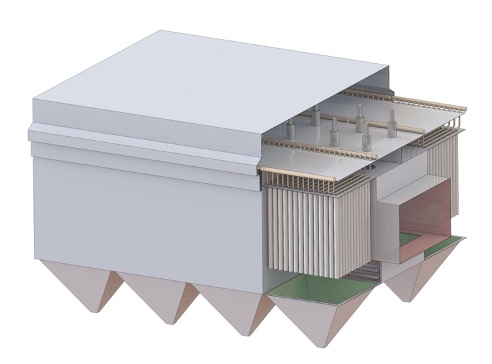

The equipment to collect particulates are Fabric Filter Baghouses. These have certain advantages, especially when used with SDAs (Spray Dryer Absorbers) because of the moist nature of the collected flyash, sulfur and lime slurry can continue to react with oxides of sulfur in the filter cake. Here is an illustration of a Baghouse, followed by a photo of an actual Fabric Filter Baghouse installed on a 650 MW coal plant.

The operating principle of a Fabric Filter Baghouse is basically the same as a home vacuum cleaner, where the dust is collected in a filter cake on the fabric surface. The filter cake then breaks up and falls by gravity to the hoppers below where it is then pneumatically removed and transported to ash storage.

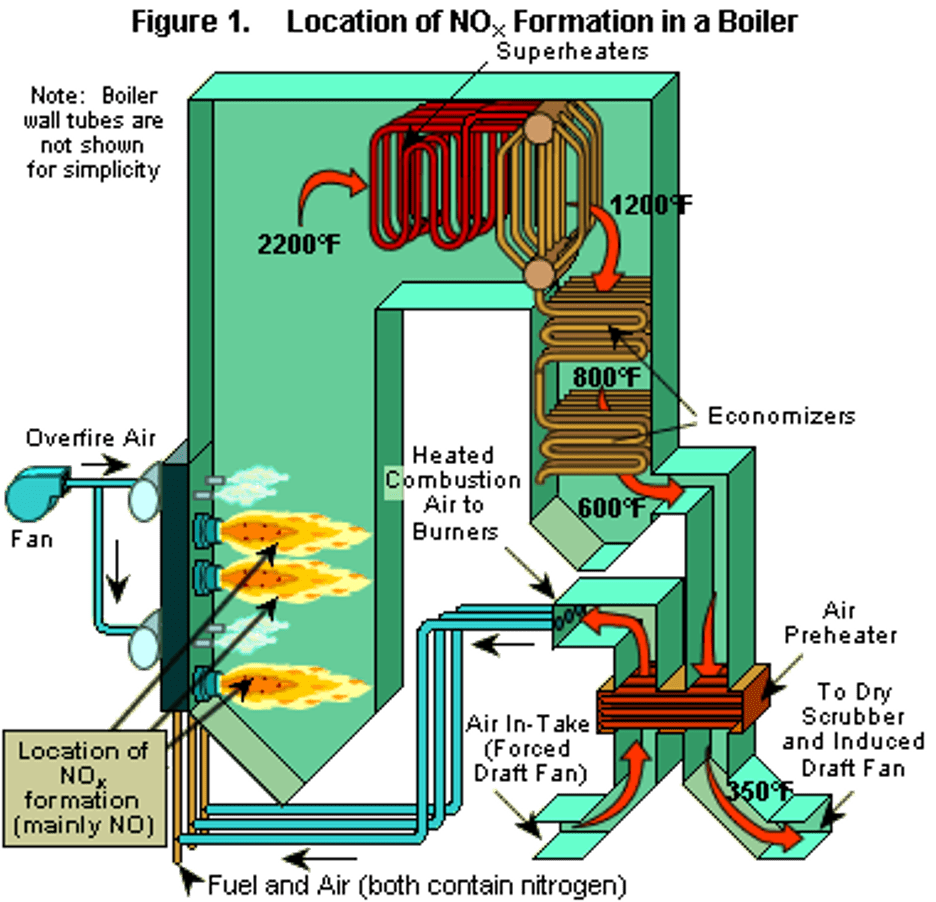

Oxides of Nitrogen

Combustion of coal creates oxides of nitrogen from both the nitrogen in ambient air and from the nitrogen that is trapped in the coal fuel. If uncontrolled the NO_x (an expression used to refer to all oxides of nitrogen) can contribute to ground level ozone, smog, acid rain and deterioration of visibility from photochemical smog. Therefore, oxides of nitrogen are drastically controlled to very low levels through a combination of modern low NO_x combustion systems applied to the furnace. Then also by use of post-combustion SCRs (Selective Catalytic Reactors). The following two figures illustrate modern approaches to NO_x controls.

First, Furnace solutions are low NO_x burners combined with over-fire air systems to stage combustion.

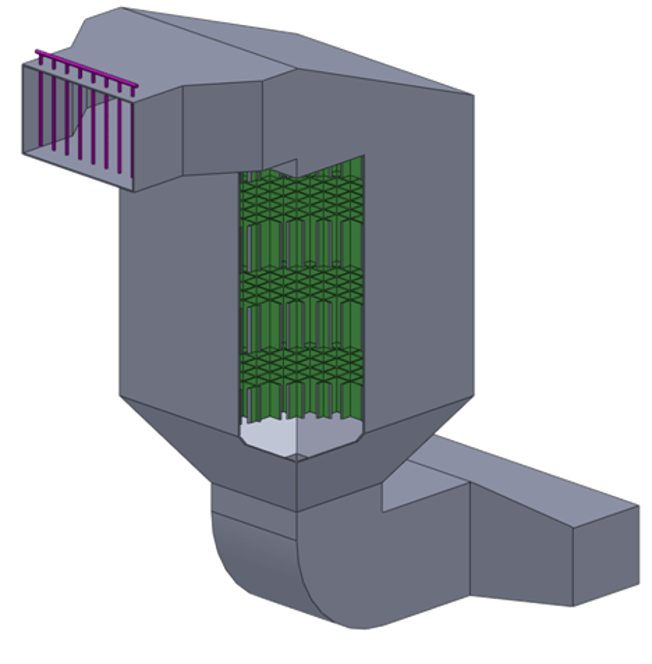

Then, post combustion, SCRs (Selective Catalytic Reactors) are used to remove most of the remaining oxides of nitrogen. An illustration of an SCR is shown below.

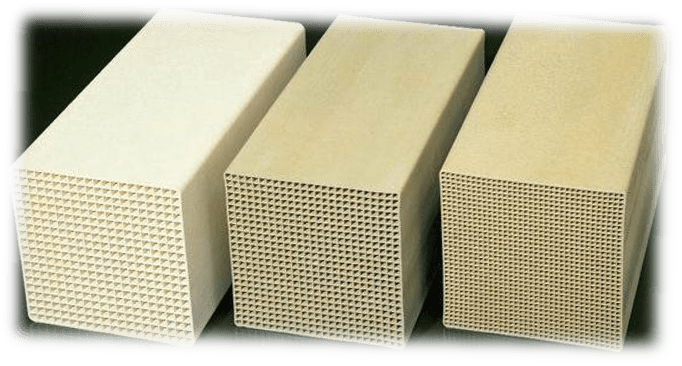

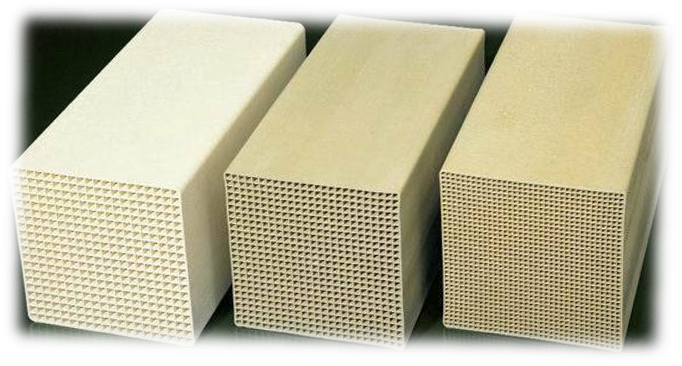

The catalyst inside the SCR is reactive honeycomb ceramic as shown below.

Removal of Heavy Metals including Mercury

There are trace amounts of heavy metals in coal ash such as arsenic and mercury, Most of these are removed with the FGD (Flue Gas Desulfurization) system. Sometimes, if the mercury is above limits activated carbon injection is utilized to absorb and collect the mercury.

The Integrated Emissions Control System

The systems described above work together to collect or control the ash particulates, sulfur, NO_x and mercury. One version of an integrated emissions control systems is shown below.

Stack Emissions are Harmless Water Vapor and CO₂

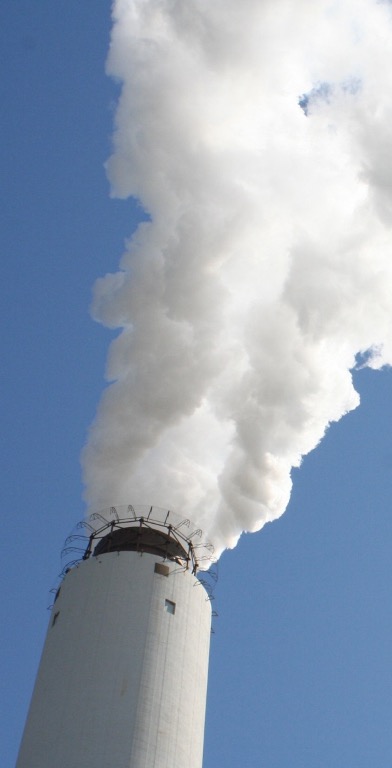

The stack plumes are mentioned by those critical of coal power because they are so visible from far away. The fact is that the stack plumes are harmless water vapor, CO₂ , nitrogen and oxygen not that much different than the exhaled breath of a human. Dr. William Happer gave a presentation a few years ago using that very example. Dr. Happer’s presentation is here.

Summary

Back in 1970 the boiler island comprised a steam generator and the fuel burning equipment. Minimum backend flue gas cleanup equipment was installed. There was no treatment of oxides of sulfur. Since 1970 the flue gas cleanup systems have advanced to huge chemical processing plants that require more manpower, maintenance and attention than the “Power Block” including the power generation equipment, steam generator, steam turbine and auxiliaries. The result is shown on the first chart above which shows the progress since 1970 in cleaning our air. The equipment for removal of harmful pollutants has been invented, perfected, installed, proven and continues to be commercially available. Another example is the John Turk Plant in Arkansas. This was POWER Magazines “Plant of the Year” in 2013 and is shown below. This is from the B&W success stories. https://www.babcock.com/home/products/spray-dryer-absorber-sda

Conclusions

1. Coal has been wrongly demonized by NGOs, MSM, Entertainment, wealthy individuals and enemies of the U.S.
2. Politicians have been duped into believing the “Manmade Global Warming Narrative” and that shutting down coal plants will make a difference. It won’t.
3. Regulations and Laws have been wrongly applied to shut down coal plants and the coal industry
4. Many of America’s elected officials have implemented policies that are Self-Sabotaging the once most reliable electric Grid in the world
5. Utility executives are just as bad as the indoctrinated public and have chose to follow the “Easiest path” to Bulk Power Supply. That path is, install lots of unreliable solar and wind and then back it up with natural gas turbines. Why? Because generating Bulk Power from coal fuel is complicated, expensive and simply harder to do. It takes hard work to overcome public resistance, more capital and more employees. It is simply a lot easier to take the renewables + CCGT path rather than the path of least cost, most reliable generation. Call it hitting the “Easy Button” But it is NOT best for America!
6. The De-Regulation of electricity in the 1990’s has absolved most Electric Utilities of Accountability to construct the needed Dispatchable electricity generation capacity. Before De-Regulation each Regional Utility planned for growth to match needed Demand with available and affordable generation capacity.
7. It costs much more Capital to “Burn Coal than to Mine it”
8. The general public Energy IQ is very low. So is the Energy IQ of most politicians.
9. The possibility of unreliable electric service is possible due to decades of public indoctrination
10. The largest need today in Energy and Electricity Generation is better energy education of the public

Yours truly,

Dick Storm, May 14, 2026
